About Electrical Wiring Pro 2017
Updated for the 2017 Electrical Code. This app supports the 2008, 2011, 2014 and 2017 codes. This app will include all future enhancements prior to the NEC 2020 code, other Electrical Wiring Pro apps will receive bug...
Updated for the 2017 Electrical Code. This app supports the 2008, 2011, 2014 and 2017 codes. This app will include all future enhancements prior to the NEC 2020 code, other Electrical Wiring Pro apps will receive bug fixes, but new features will be found here.
New features include the 2017 NEC recommended Torques, the new derating for conductors above roof, and wire bending space for compact aluminum wires.
AMPACITY AND WIRE SIZING per Article 310

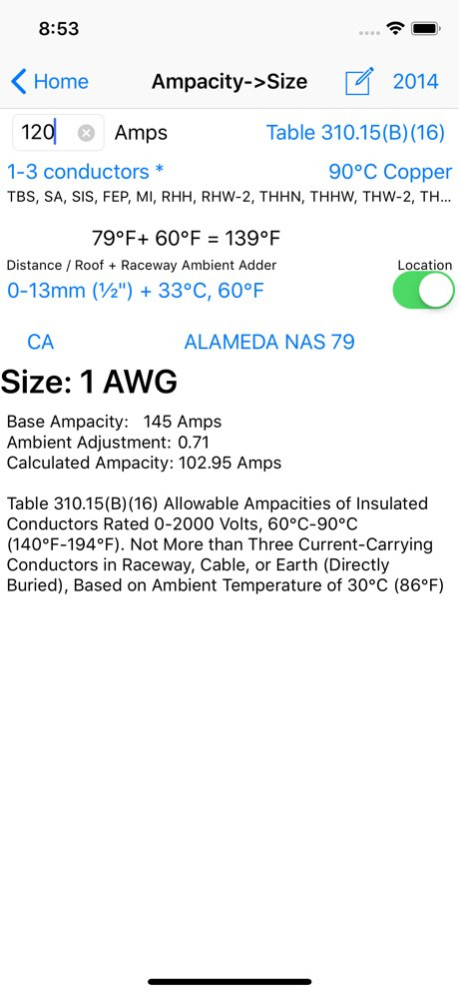

+ Ampacity - Size (UPDATED)
+ Grounds - GEC and EGC Sizing
+ Dwelling Service and Feeder Sizing (From table or "83%" rule)
- Adjustments for Ambient, # conductors and height above roof
BOX FILL / WIRE BENDING SPACE

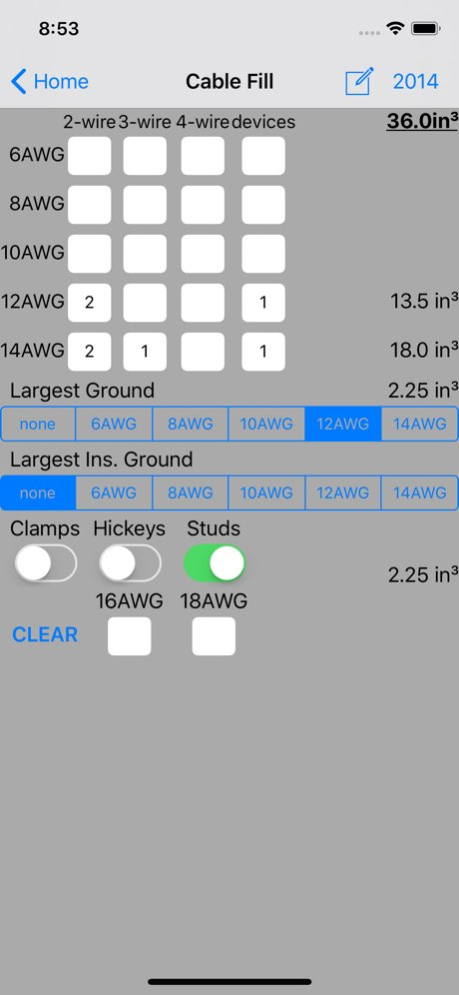

+ Wire, Device and Hardware Box Sizing
+ Cable option vs wires, e.g. for Romex
+ Wire Bending Space for Cabinets, Gutters, Motor Controllers etc (UPDATED)
+ Standard Box Wire and Ring Information
CONDUIT FILL per Chapter 9
+ Conduit Size Needed
+ How Full Conduit is given a set of wires
+ Max # of Wires Per Conduit
+ Conduit Info
+ Wire Info
BASIC CONDUIT BENDING
+ Offset (simple or compound)
+ Parallel Conduit Spacing

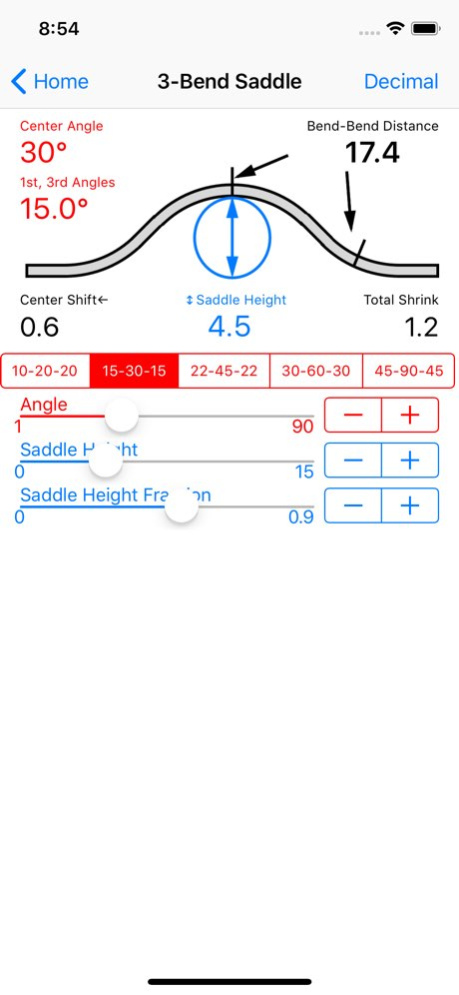

+ Three Bend Saddle
+ Corner Obstacle
+ Segment Bend
+ Minimum Bend Radii per Code
- Conduit Calculations in fractions or Inches
RESIDENTIAL LOAD CALCULATIONS per Article 220
+ Single Family Dwellings, including Part III (Standard), Part IV (Optional), Reduced Neutral Volt-Amps and Current
+ Multi Family Dwellings, including "House" Loads; Standard, Optional and Reduced Neutrals
+ Range (and other Cooking) Calculations
VOLTAGE DROP per Chapter 9
+ Voltage and % Drops

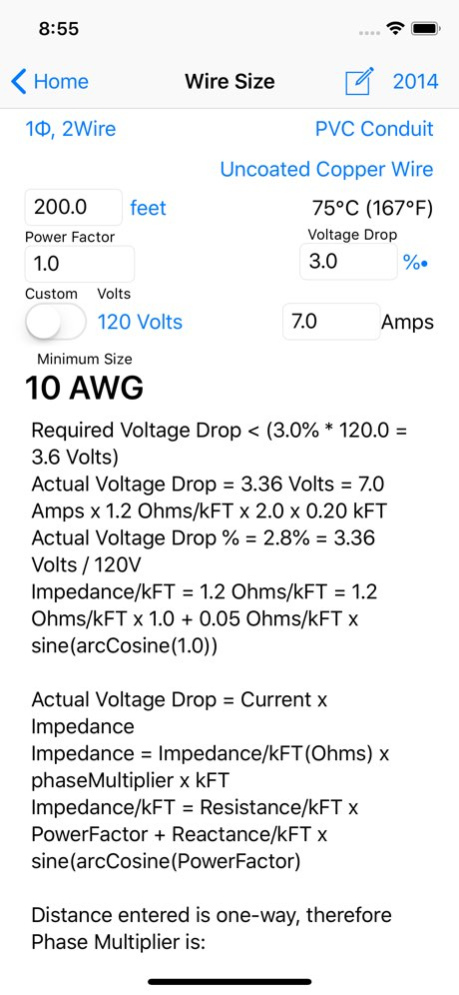

+ Wire Sizing for a given drop/%
+ Maximum Wire Length
+ Maximum Load
+ Impedance per Code
OTHER
+ Recommended Torques
+ Cover Depth for buried wires and conduits per 300.5 and 300.50
+ PIRE Wheel
+ Receptacle configurations
+ Phone/Ethernet pinouts
Apr 16, 2018
Version 1.0
This app has been updated by Apple to display the Apple Watch app icon.
Previous Versions
Here you can find the changelog of Electrical Wiring Pro 2017 since it was posted on our website on 2021-12-17 23:08:38.
The latest version is 1.0 and it was updated on 2024-04-22 09:52:01. See below the changes in each version.
Electrical Wiring Pro 2017 version 1.0
Updated At: 2018-04-16
Changes: Apr 16, 2018 Version 1.0
This app has been updated by Apple to display the Apple Watch app icon.
